Steel hinge plate belts

The extremely robust steel hinged plate conveyor is mainly used in the automotive industry.

It is ideal for transporting hot, sharp-edged or oily parts.

  • Straight design
  • Design with kink
  • L-shape
  • Z-shape
  • Panel thickness 2.5 mm, 5.0 mm, 8.0 mm, 10.0 mm
  • Hinge design steel
  • Hinge design stainless steel 1.4301

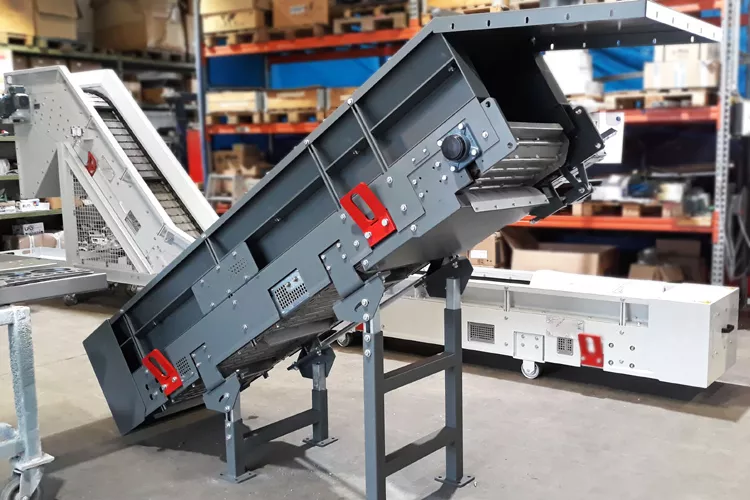

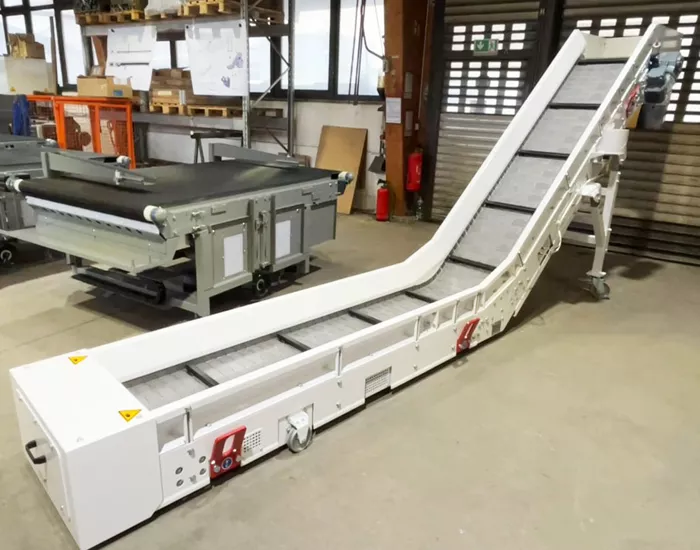

Type SPB 440, Z-shape, panel thickness 8mm

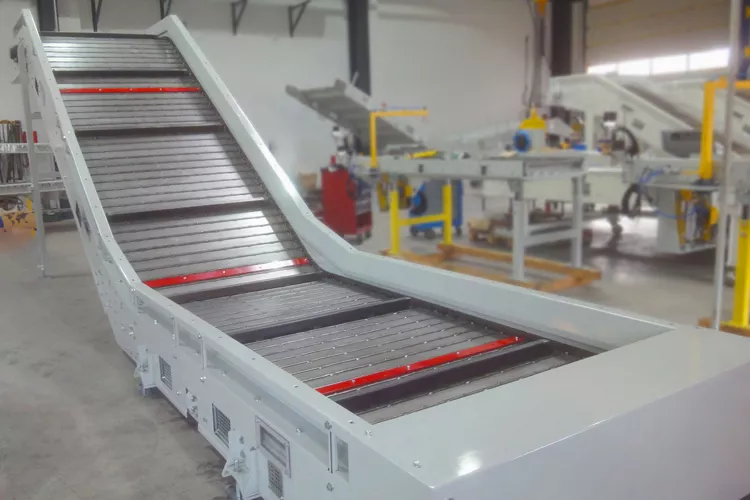

Type SPB 205, Z-shape, panel thickness 10mm

Type SPB 440, Z-shape with chip separation

Type SPB 205, L-shape, panel thickness 10mm

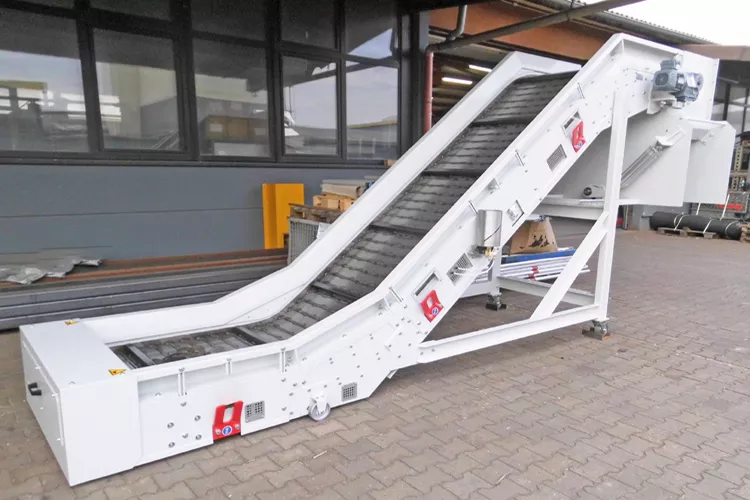

Type SPB 150, Z-shape, panel thickness 8mm

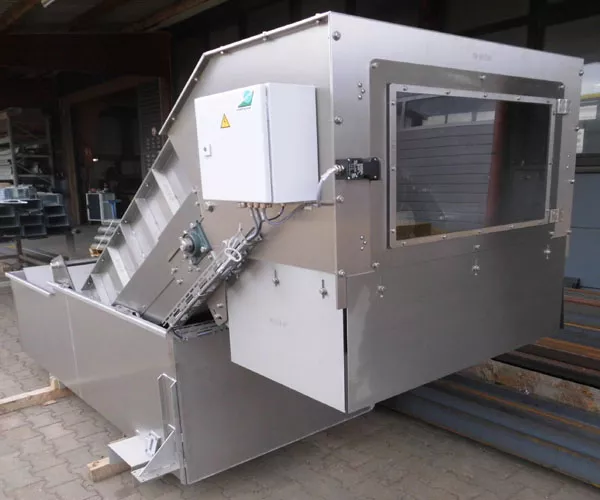

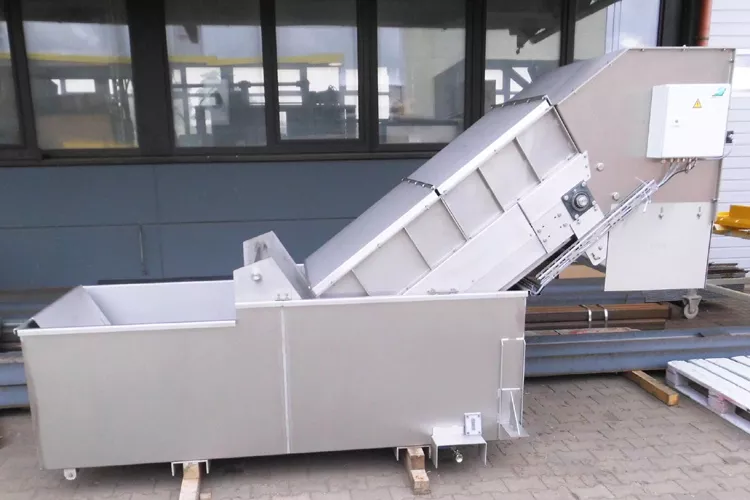

Hinged steel belt in stainless steel design with quenching basin

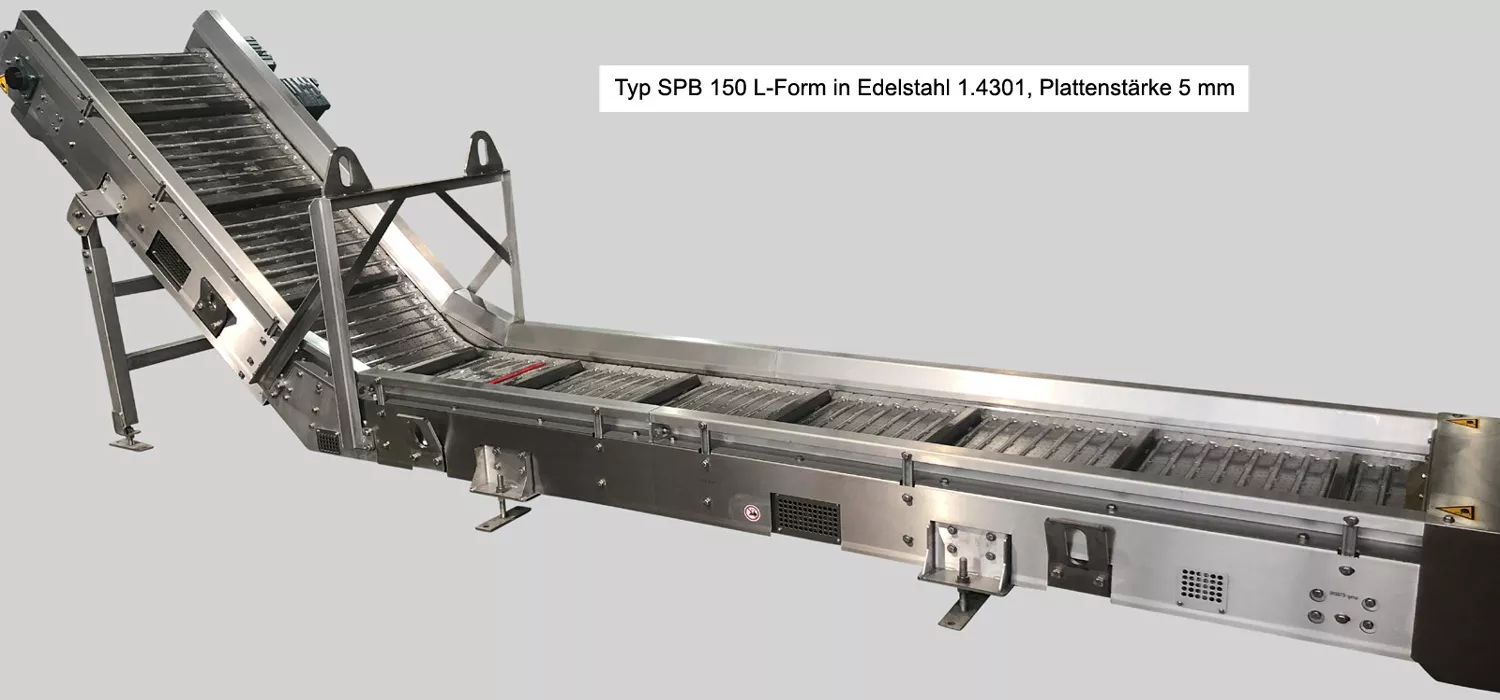

Type SPB150, L-shape, panel thickness 2.5 mm

Type SPB 150, Z-shape, panel thickness 2.5 mm

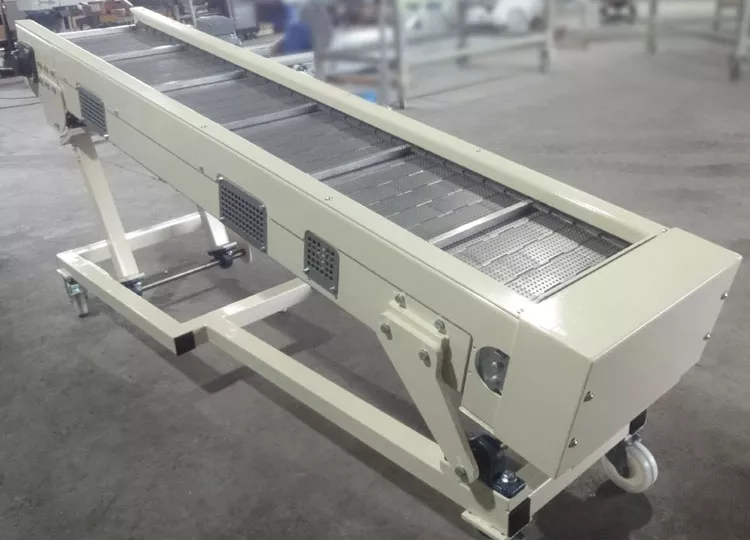

Type SPB 205, straight version, panel thickness 8mm, with trolley

Type SPB 150, straight design with knobbed hinges, panel thickness 2.5 mm

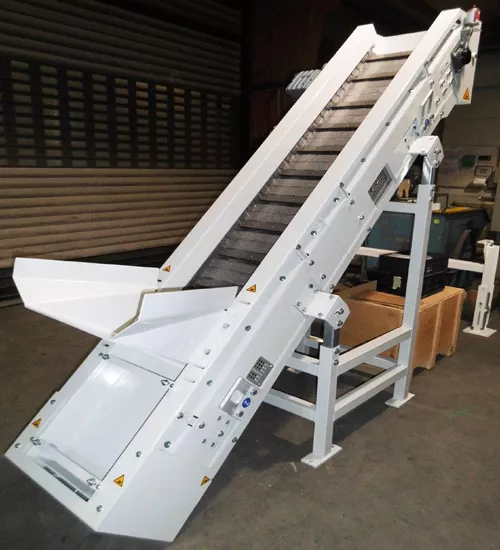

Ascending conveyor type SPB 150

Type SPB 150, panel thickness 2.5 mm

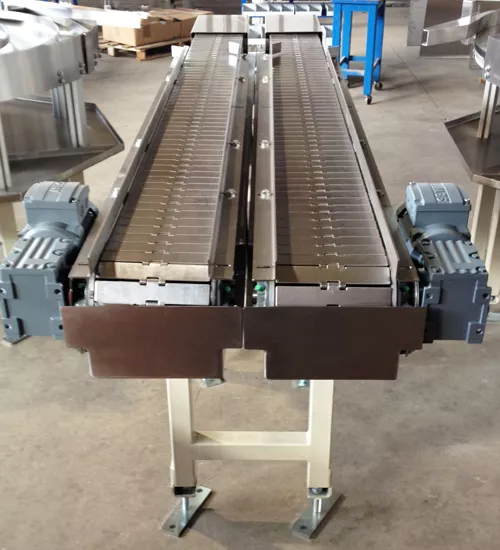

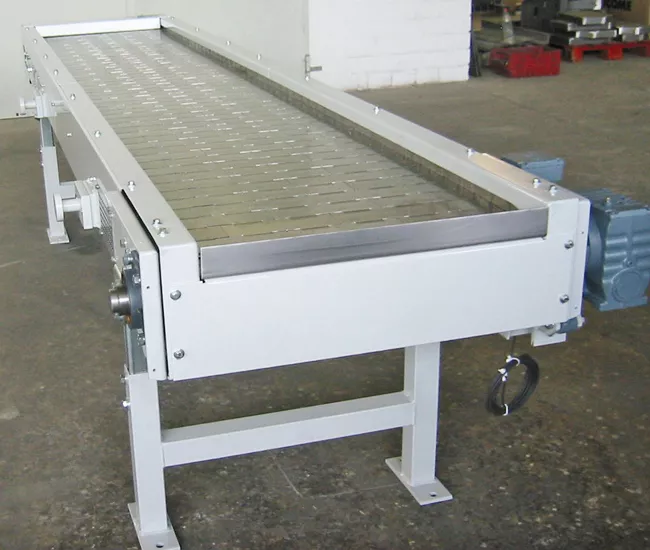

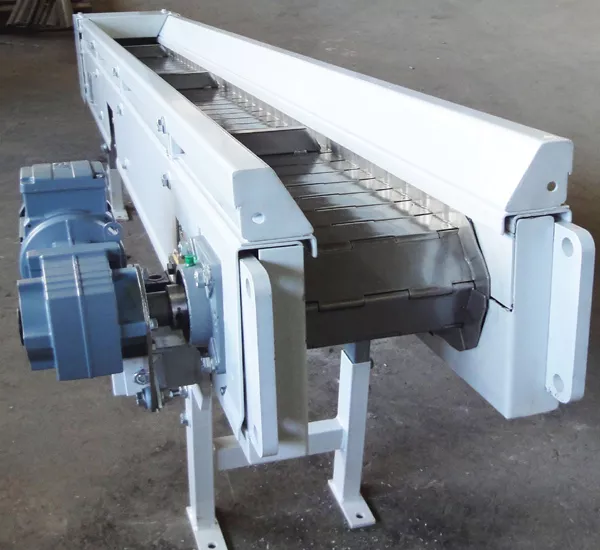

Type SPB 150, straight design

Apron conveyor type PFB

Standard quality features of our steel hinged steel belts

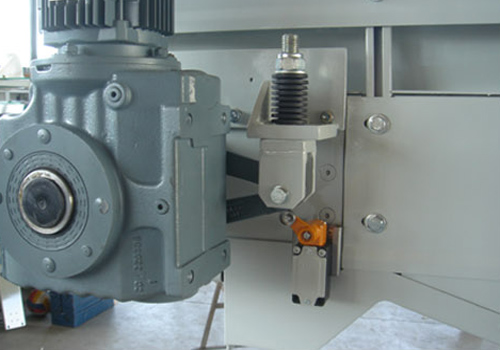

Switch-off protection in the event of overload

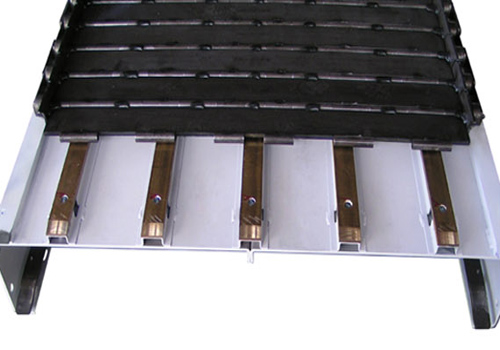

Replaceable brass wear rails

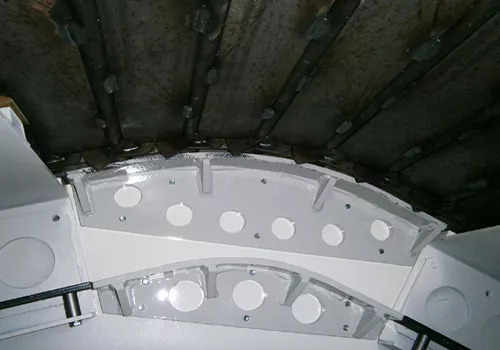

Replaceable running rail in the buckling area

Additional equipment options

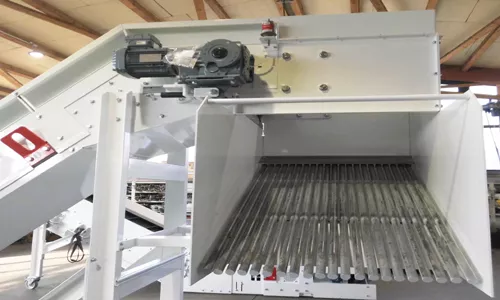

Chip separating grate

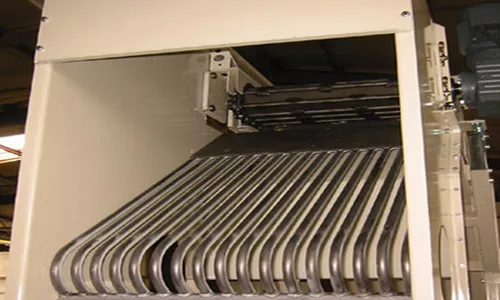

Chip separation grid transverse to the conveying direction

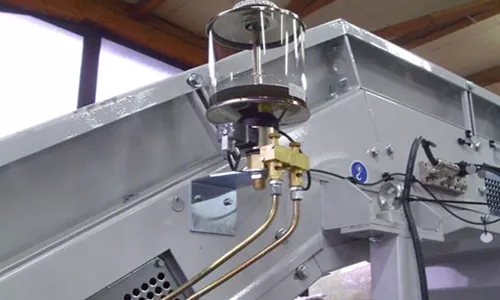

Chain lubrication system using oiler with solenoid valve

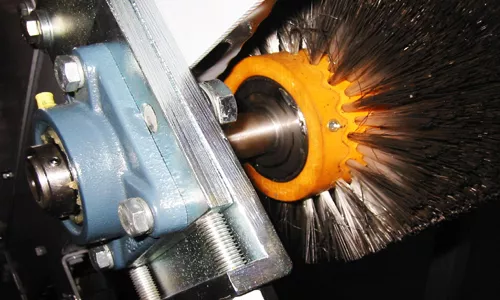

Powered circular cleaning brush
