Extraction Technology Components

  • Support rollers to DIN 15207
  • Support and buffer rollers
  • Lateral guide rollers
  • Special castors
  • Smooth-running castors
  • Sprocket rollers
  • Support stations
  • Steering stations
  • Drive and return rollers
  • Special solutions

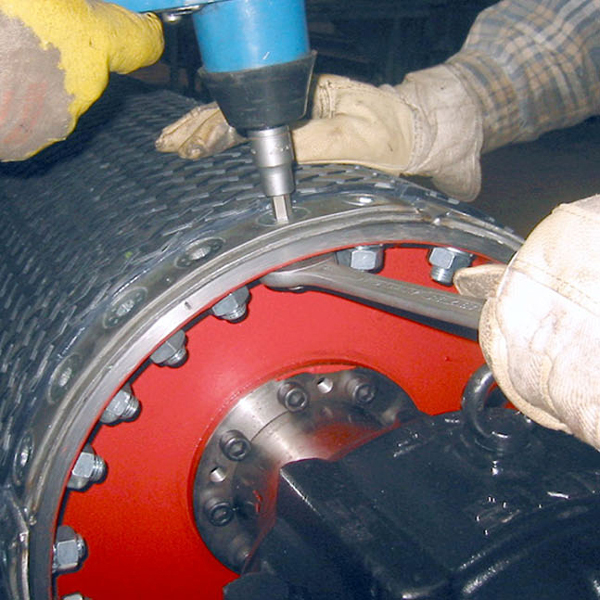

  • Wear protection
  • Accessories

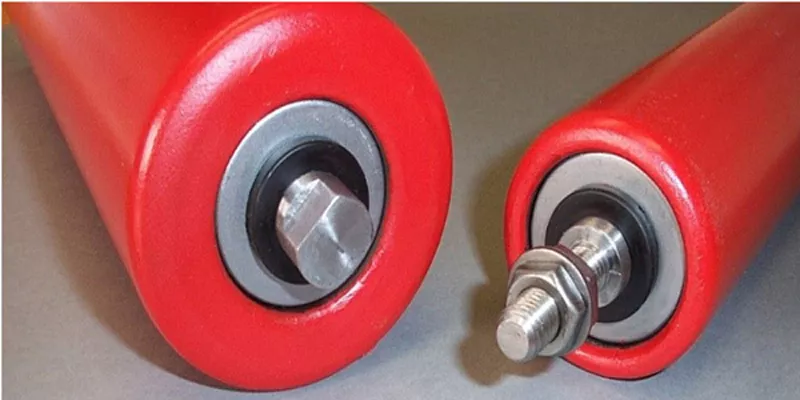

WESTA support rollers type MSP to DIN 15207

Our quality standards:


  • Support roller tubes made of S235JR steel to DIN 2548
  • Deep-drawn bearing brackets pressed in at the sides and welded all round

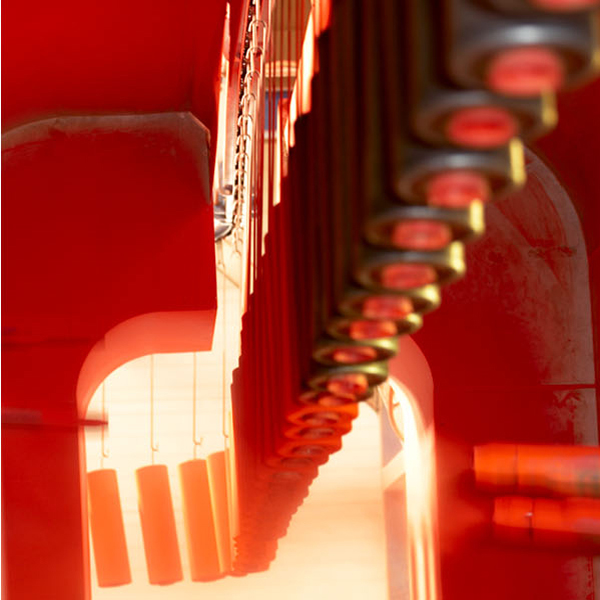

  • Jacket powder-coated red RAL 3000
  • Axle Round steel d= 20 mm to ISO H9
  • Single-row steel deep groove ball bearings to DIN 625, type 6204C3 with sheet steel shields on both sides
  • Steel circlips to DIN 471

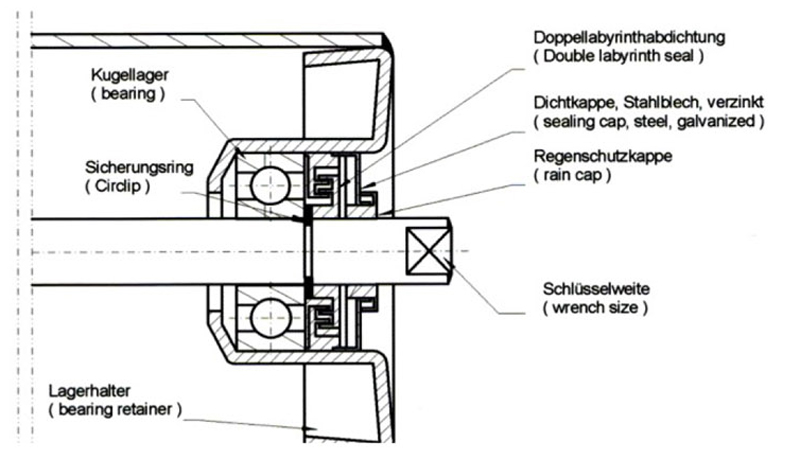

  • Double labyrinth seal incl. grease filling, galvanized sealing cap and plastic rain protection cap

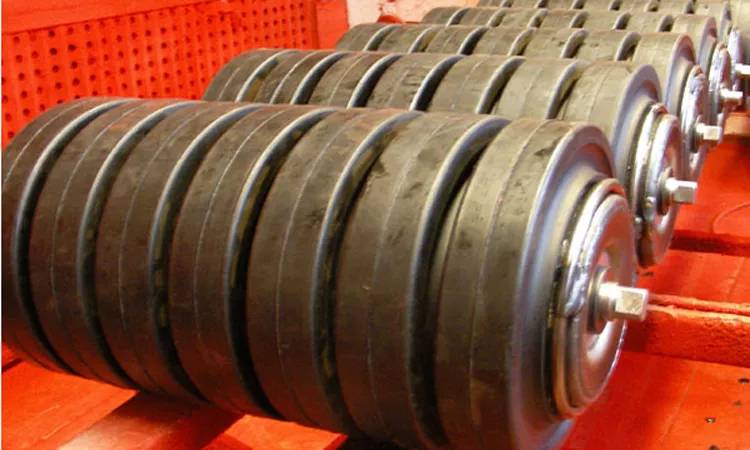

Buffer rollers

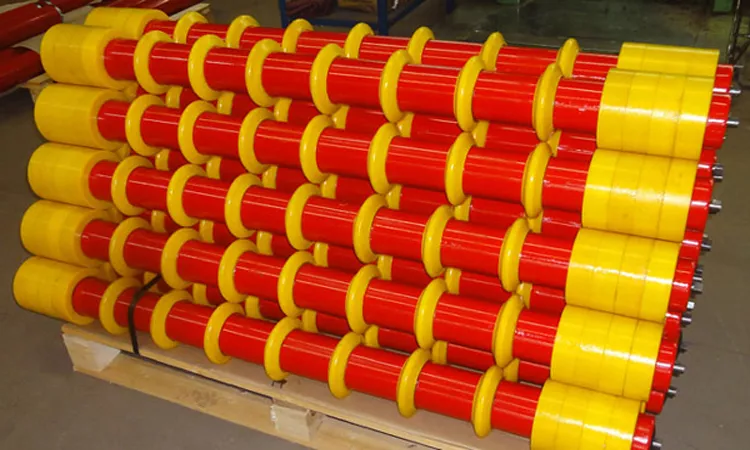

Underband rollers with support rings form A and B

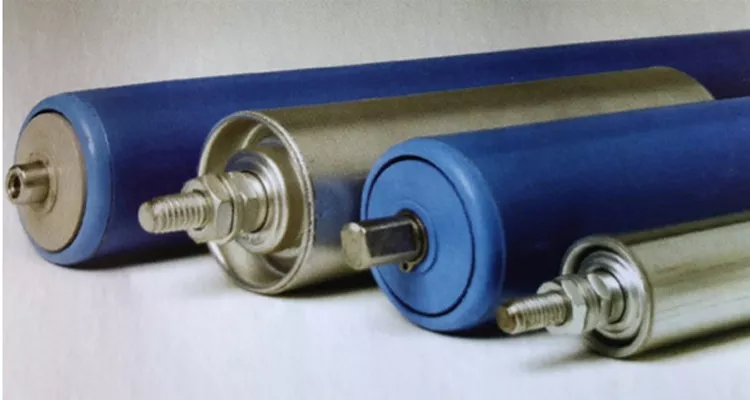

Smooth-running castors Roller shell galvanized or made of plastic

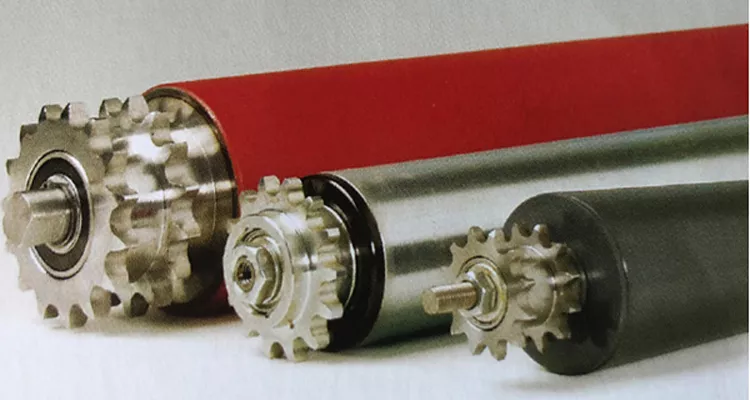

Driven idlers Fixed drive in steel or plastic

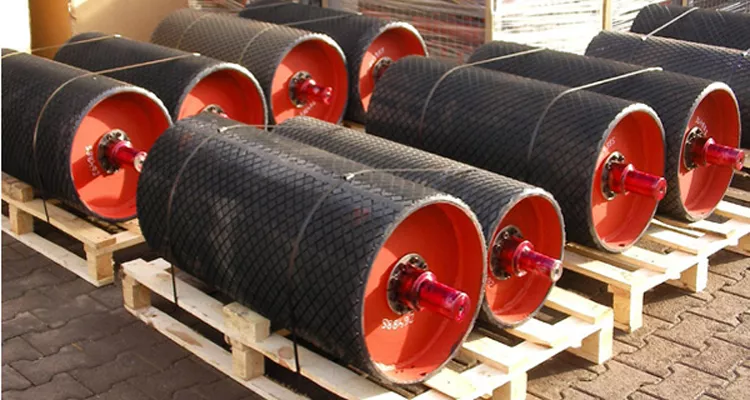

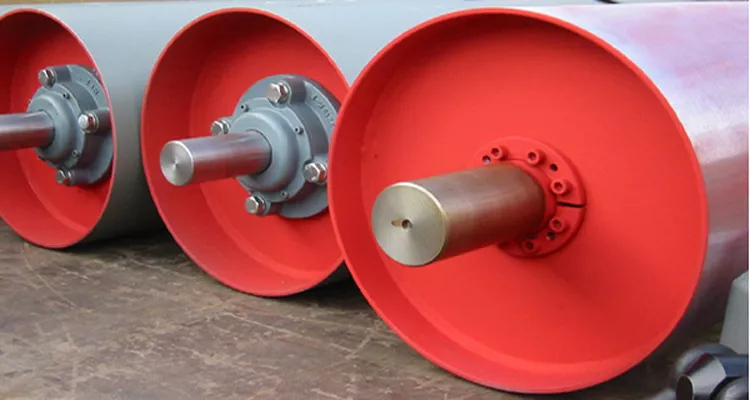

Drive drums with welded or clamped axle

Idler drums Axle clamped, welded or mounted

We attach great importance to high quality standards in the manufacture of our idlers and turned parts.


All our products are manufactured from high-quality materials and are subject to extensive outgoing inspections before being shipped to the customer.

Complete catalog

Innovative components for conveyor technology with detailed product information and dimensions.

Download here as PDF:
